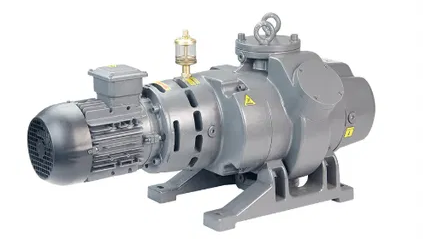

TLS-VortiFlow-BA2020 Pump

TLS-VortiFlow-BA2020 Pump delivers a pumping speed of 153 m³/h and an ultimate pressure of 0.05 Pa, ensuring efficient performance for vacuum distillation. It features air cooling, a noise level of 63 dB(A), and a robust motor power of 1.1 kW. With a compact dimension of 570*300*348mm and a weight of 90 kg, it is designed for reliability and ease of use. The product is CE certified, ensuring compliance with EU safety standards and providing market access assurance for buyers.

warranty: 1 year
Pressure: 0.05Pa
Pump model number: TLS-VortiFlow-BA2020
application: Machining power source:
Brand name: AEK
Pump horsepower: 1.1kW
Outlet size: 65mm
Motor: Three
Phase Liquid: Oil
Chemical Compatibility: oils Discharge
Pipe Size: 65mm
Sealing Material: PTFE, Magnetic, carbon Pumping
Speed: 153m³/h
Ultimate Pressure:0.05 Pa Extreme
Full Pressure: 0.5 Pa Max.
Differential Pressure: 8000 Pa
Motor Power: 1.1kW Inlet
Connection: 65mm Oil Capacity: 1.5 L
Weight: 64.5 kg
Dimension: 57*30*34mm
