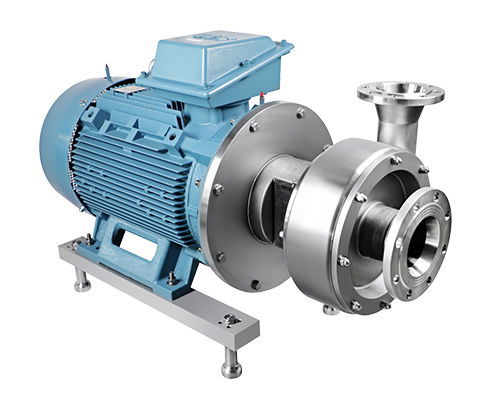

AEK-HydroTitan NX-010133 Pump

AEK-HydroTitan NX-010133 Pump are equipped with vortex impeller. The benefit of a vortex impeller over a channel impeller is the minimized risk of clogging. A vortex impeller is also a better choice and pumped liquid has a high content of sand. These pumps have large free passage up to 3½” in diameter suitable for lifting of sewage liquid, civil waste and industrial waste water containing solids and viscos materials, heavy muds or fermented sludge.Application: Food And Beverage Industry

Warranty: 1 year
Brand name: AEK
Outlet size: DN150-250
Fuel: Oil
Power: Electric
Usage: Water
Motor: Three-Phase Motor
Power source: Electric
Flow: 100m2-800m2
Max head: 40m
Temperature: -20 °C
Power: 11KW-90KW
Material: 304/316L
Surface treatment:Ra≤0.8μm  ≤Ra0.6μm, Ra ≤0.4μm
Mechanical seal:Single mechanical seal
Inlet/Outlet Connection:Flange,Aseptic flange

Weight: 33.5kg
